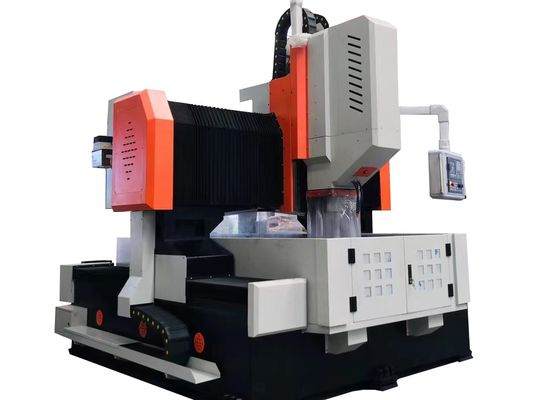

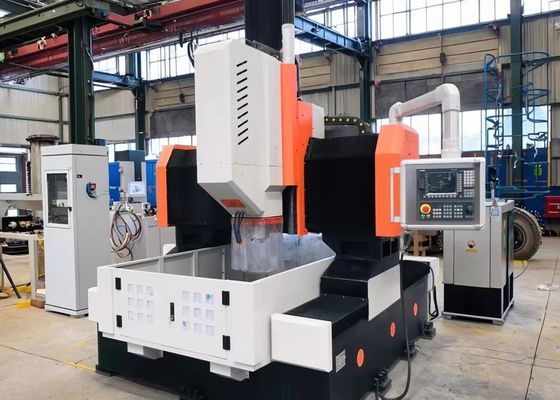

50mm Max Drilling Diameter CNC Gantry Flange Drilling And Milling Machine 3.2x2.2x2.2m Overall Size
Application:
The CNC plate and sheet metal drilling-milling machine is mainly designed for the processing of tube sheets, flanges, bearing seats, heat exchangers, and other components, serving industries such as petrochemical engineering, nuclear power, wind power, boiler manufacturing, and steel structure production. It supports high-speed drilling operations using carbide drills with internal cooling systems, or alternatively, high-speed twist drills equipped with external cooling mechanisms. This equipment integrates a variety of core functions, including drilling, chamfering, tapping, milling, and boring, to meet comprehensive processing needs. Furthermore, it offers an optional automatic right-angle spindle head, which facilitates side drilling, side tapping, and side milling processes for enhanced operational flexibility.
Specifications:
| Model |
PHD1010 |
PHD2016 |
PHD2020 |
PHD3030 |
PHD4080 |
| Workpiece size |
LxW (mm) |
1000x1000 |
2000x1600 |
2000x2000 |
3000x3000 |
4000x8000 |
| T-slot width of workbench (mm) |
28 |
28 |
28 |
28 |
28 |
| Drilling power head |
Qty. |
1 |
1 |
1 |
1 or 2 |
1 or 2 |
| Spindle taper |
BT40 |
BT50 |
BT50 |
BT50 |
BT50 |
| Max.drilling diameter (mm) |
Φ50 |
Φ60 |
Φ80 |
Φ90 |
Φ90 |
| Max.thickness (mm) |
≤180 |
≤180 |
≤250 |
≤300 |
≤300 |
| Tapping diameter |
M3-M20 |
M3-M25 |
M3-M30 |
M3-M36 |
M3-M36 |
| Spindle speed (r/min) |
30~3000 |
30~3000 |
30~3000 |
30~3000 |
30~3000 |
| Servo spindle motor power (kW) |
11 |
15/22 |
22/30 |
22/30/37 |
22/30/37 |
| Lateral movement of power head (X axis) |
Max.horizontal stroke (mm) |
1000 |
1600 |
2000 |
3000 |
4000 |
| Lateral movement speed (r/min) |
0~8 |
0~8 |
0~8 |
0~8 |
0~6 |
| Servo motor power for lateral movement (kW) |
2.4 |
2.4 |
2.4 |
3.6 |
3.6 |
|
Gantry longitudinal movement (Y axis)
|
Max. feed stroke (mm) |
1000 |
2000 |
2000 |
3000 |
8000 |
| Feed moving speed (m/min) |
0~8 |
0~8 |
0~8 |
0~8 |
0~6 |
| Feed servo motor power (kW) |
2.4 |
2.4 |
2.4 |
3.6 |
3.6/5.5 |
| Vertical ram feed motion (Z axis) |
Max. stroke (mm) |
400 |
400 |
800 |
1000 |
1400 |
| Moving speed (m/min) |
0~8 |
0~8 |
0~8 |
0~8 |
0~4 |
| Servo motor power (kW) |
2.4 |
2.4 |
2.4 |
3.6 |
3.6 |
| Three-axis positioning accuracy |
X/Y/Z/A/B/C (mm) |
±0.02/1000 |
±0.02/1000 |
±0.015/1000 |
±0.015/1000 |
±0.015/1000 |
| Three-axis repeat positioning accuracy |
X/Y/Z/A/B/C (mm) |
±0.01/1000 |
±0.01/1000 |
±0.01/1000 |
±0.01/1000 |
±0.01/1000 |
| Electrical system |
CNC system |
SIEMENS/ FAGOR/ KND/ GSK |
| Tool changer |
Disc type (Optional) |
24 tool positions |
| Overall size |
LxWxH (m) |
3.2x2.2x2.2 |
4.4x3.2x2.7 |
5.3x3.8x2.7 |
6.6x4.9x2.9 |
13x6.9x6.2 |
Product Features
1. The worktable is furnished with multiple horizontal T-slots, specifically designed for securing fixtures and plates during operation. An optional four-jaw self-centering chuck clamping device is available, which significantly enhances production efficiency when processing batch parts.
2. The equipment is equipped with either the German Siemens CNC system, Spanish FAGOR CNC system, or Chinese KND system. Drilling coordinates support direct conversion between CAD and CAM formats, streamlining programming, storage, display, and data communication processes. The user interface incorporates error compensation, automatic alarm functions, and intuitive human-machine interaction capabilities. Workpiece hole positions can be input via keyboard, USB, network, or CAD graphics, with the system automatically generating machining programs. Pre-drilling preview and verification features further enhance operational convenience and accuracy.
3. The CNC gantry plate and sheet metal drilling-milling machine is outfitted with an automatic chip conveyor and an automatic lubrication system. Its cooling configuration includes a high-pressure internal cooling pump and a low-pressure external cooling pump, enabling selection between internal and external cooling modes as operational requirements dictate.
4. The CNC gantry metal plate and flange drilling-marking machine is furnished with a photoelectric edge finder, enabling convenient and rapid positioning of workpieces. Furthermore, optional 24-tool disc magazines or linear tool magazines are available, which substantially enhance machining efficiency.
The CNC flange and carbon steel gantry-type drilling, marking, and milling machine is a high-performance industrial equipment, specifically engineered for the precision machining of plate-like components and structural parts. This equipment is tailored to process workpieces such as flanges, discs, rings, and flat plates—with a core prerequisite that the thickness of these workpieces fully complies with the machine’s specified effective machining range.
Within steel structure workshops, this equipment performs precision drilling and milling on structural plates and connecting components, thereby laying a solid foundation for the stable assembly of steel frameworks. For the wind power sector, it provides high-precision machining services for wind turbine towers and flanges—a critical process that ensures these components can withstand severe environmental conditions (e.g., strong winds, temperature variations). In bridge construction projects, the equipment processes bridge girders and support brackets; this, in turn, ensures the formation of stable and durable connections. These connections are designed to bear dynamic loads throughout the bridge’s extended service life.
