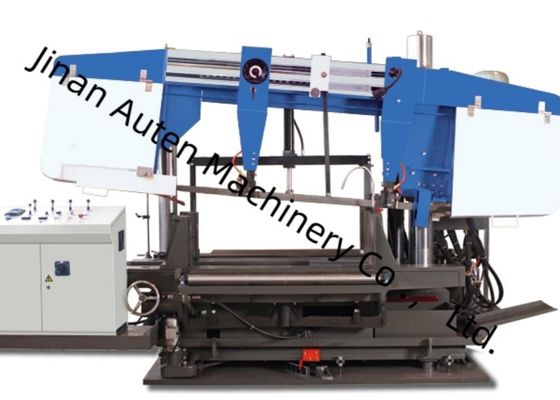

φ5～φ30 Mm Hole Diameter 3D CNC H-Beam Drilling Milling And Sawing Machine 11KW Motor Power
Application industry:
This machine tool is specially designed for drilling operations on H-section steel. It integrates three high-speed precision drilling spindles to perform workpiece drilling, ensuring exceptional machining accuracy while enabling straightforward and efficient operation. As a core high-efficiency piece of equipment in the steel structure sector, it is widely utilized in construction engineering, bridge construction projects, tower masts, grid structures, and other related fields.
Specifications:
| H beam parameter |
Max. Size Width x Height |
700×500mm |
| Min. Size Width x Height |
100×100mm |
| Beam Length |
2000～12200mm |
| Main spindle |
Qty. |
3 |
| Model |
BT40 |
| Motor power |
11 kW |
| Spindle speed |
100～3000 r/min |
| Hole diameter |
φ5～φ30 mm |
| CNC axis |
Servo motor power of X axis |
About 5 kW |
| Servo motor power of horizontal drilling positioning axis |
About 1.5 kW |
| Servo motor power of vertical drilling positioning axis |
About 3 kW |
| Servo motor of drilling infeeding |
About 2 kW |
| Tool magazine |
Qty. |
3 |
| Type |
Row style |
| Tool magazine capacity |
4 x 3 |
| Processing Accuracy |
Hole distance deviation |
Two holes within 1 meter |
±0.5 |
| The allowable deviation value increases by ±0.2mm for every additional 1 meter of the hole distance, and the maximum does not exceed ±2mm |
| End margin deviation |
±1.0 mm |
| Machine size |
About 33x5.5x3.3m |
Components of CNC Drilling Machine Line
The CNC drilling machine primarily consists of a main machine body, CNC feeding system, discharge conveyor, cooling system, hydraulic system, pneumatic system, lubrication system, electrical system, and scrap trolley. The production line adopts a fixed bed structure paired with a movable workpiece configuration. The 3D drilling machine featuring this structural design facilitates seamless automated production processes.
1. Lubrication System:
This system employs a combined approach of centralized lubrication and manual lubrication. A centralized lubrication unit is utilized to deliver regular and metered lubrication to specific linear guides and lead screws, while other lubrication points are maintained through manual lubrication operations.
2. Main Machine Body:
The main machine body primarily comprises a base, a bed, a movable sliding table, a headstock, an upper clamping device, a side clamping device, and a row-type tool magazine. The bed boasts excellent rigidity and stability, enabling it to withstand the loads and vibrations generated during high-speed machining while ensuring the precision of the machine tool.
A total of three headstocks are mounted on the main machine body, specifically including the fixed-side headstock, movable-side headstock, and upper unit headstock. These headstocks are dedicated to performing drilling operations in the horizontal and vertical directions respectively. Each headstock is capable of independent operation, and can also work in synchronization to complete drilling tasks simultaneously. This dual operational capability significantly enhances overall production efficiency.

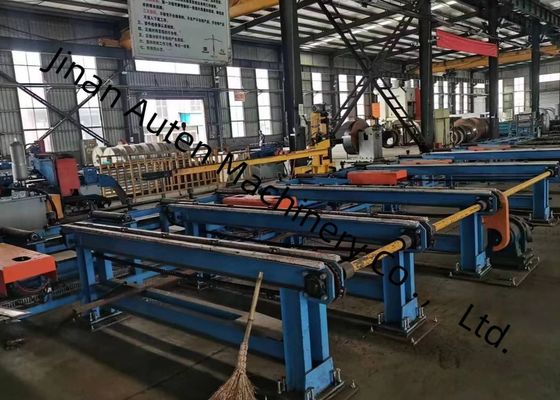

3. Infeeding Conveyor
The infeeding conveyor comprises a conveyor support, support rollers, side positioning rollers, a side pushing device, a rack, and other components. The feeding channel serves to convey workpieces to be processed; a photoelectric switch is installed at the front end of the material channel to detect the workpiece’s front end and define the X-direction machining datum. The side pushing device clamps the workpiece tightly and presses it against the side positioning rollers, thereby achieving rough positioning of the workpiece in the Y-direction.
This machine tool is purpose-built for drilling, tapping, and marking operations on H-beams, channel steel, and an array of other steel workpieces. The samples presented herein clearly illustrate the machine tool’s capability to achieve precise hole positioning, smooth tapped threads, and sharp marking patterns—fully embodying its high precision and dependability in practical application scenarios.
In steel structure workshops, this machine tool conducts precision machining on H-beams utilized in frameworks and support structures, thereby establishing a solid foundation for the stable assembly of steel structures. In bridge construction scenarios, it executes high-accuracy drilling operations on H-beams—this contributes to enhancing the structural integrity of bridges, allowing them to withstand long-term loads.
