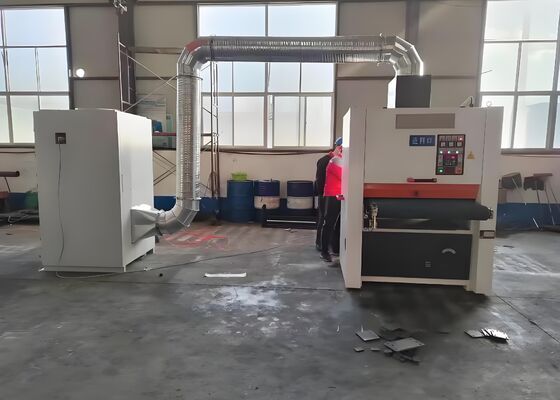

Metal Polishing Machine For Removing Burrs From Metal Surfaces
Equipment Purpose:
The Plate Polishing Machine is specially engineered for precision surface finishing of metal plates processed by laser cutting or plasma cutting. It is designed to effectively eliminate burrs, sharp edges, oxide scale, slag residue, and other surface imperfections produced during thermal cutting operations. By delivering a smooth, uniform, and refined surface finish, the machine enhances both the aesthetic appearance and functional performance of metal workpieces while preparing them for downstream manufacturing processes or final application across a broad range of industrial sectors.
Product Configuration:
| No. |
Model |
BP1000 |
| 1 |
Max. processing plate width |
1000mm |
| 2 |
Processing plate thickness |
2-100mm |
| 3 |
Processing plate length |
100mm～∞ |
| 4 |
Min. workpiece |
50x50x2mm |
| 5 |
Max. loading capacity |
500kgs |
| 6 |
Machine power |
28KW |
| 7 |
Feed motor |
2 |
| 8 |
Feeding speed |
10～4000 mm/min |
| 9 |
Abrasive belt deburring slag, burrs |
Height less than 1.5mm |
| 10 |
Cartridge dust collector |
5.5KW |
| 11 |
Cartridge dust collector size |
1000x1000x2100mm |
| 12 |
Machine dimensions |
2450x1700x2150mm |
Application industries:
This Plate Polishing Machine is widely employed in industries where premium surface quality and precision finishing are essential. It is extensively used in the production of power transmission towers, telecommunication towers, electrical power fittings, steel structures, warehouse storage systems, and various fabricated metal components. These industries depend on high-quality surface treatment to improve product appearance, ensure assembly precision, enhance coating adhesion, and increase the durability and service life of finished products.
Equipment features:
1. Automatic Continuous Feeding
The machine features a fully automated continuous feeding system capable of processing metal plates of virtually unlimited length. This design enables uninterrupted production, substantially improving manufacturing efficiency while minimizing labor requirements and production interruptions. It is particularly suitable for continuous, high-capacity industrial manufacturing.
2. Intelligent CNC Control System
Equipped with an advanced CNC control platform, the machine delivers highly accurate, stable, and repeatable polishing performance. Real-time monitoring of machine operating conditions and processing parameters provides instant feedback, enabling efficient production management while ensuring dependable and error-free operation.
3. PLC Control with Touchscreen Human–Machine Interface
The equipment integrates a PLC-based control system with an intuitive touchscreen Human–Machine Interface (HMI). Operators can conveniently perform machine start-up, shutdown, parameter adjustment, and process monitoring through a simple and user-friendly interface. The streamlined operating system reduces operator training requirements while improving production efficiency and simplifying routine maintenance.
4. Automatic Pneumatic Belt Tensioning System
A pneumatic abrasive belt tensioning mechanism automatically maintains optimal belt tension throughout the polishing process, ensuring stable machining performance and uniform surface finishing quality. The system effectively minimizes belt misalignment and uneven wear, extending abrasive belt service life while reducing maintenance frequency and overall operating costs.
5. Safe, Stable, and High-Efficiency Operation
Designed for reliable long-term industrial operation, the machine offers simple operation, convenient maintenance, and excellent production stability. Its intelligent control architecture enhances operational safety, reduces the risk of operator error, and ensures continuous, dependable performance under demanding production conditions. The optimized mechanical structure and high level of automation maximize throughput, reduce downtime, and significantly improve overall manufacturing efficiency.
The Plate Polishing Machine is specifically developed for high-precision surface finishing of metal plates manufactured through laser cutting and plasma cutting processes. It efficiently removes burrs, slag, oxide layers, sharp edges, and other surface defects generated during thermal cutting, producing a clean, smooth, and uniform surface finish. By significantly improving surface quality, the machine enhances the effectiveness of downstream manufacturing operations, including welding, painting, coating, powder coating, and assembly. It is extensively applied in industries such as metal fabrication, structural steel manufacturing, heavy equipment production, automotive manufacturing, and general sheet metal processing, where superior surface finish, consistent machining quality, and high production efficiency are critical manufacturing requirements.
