Infrastructure Construction Projects Servo Driven CNC Angle Line Electrical Power Infrastructure

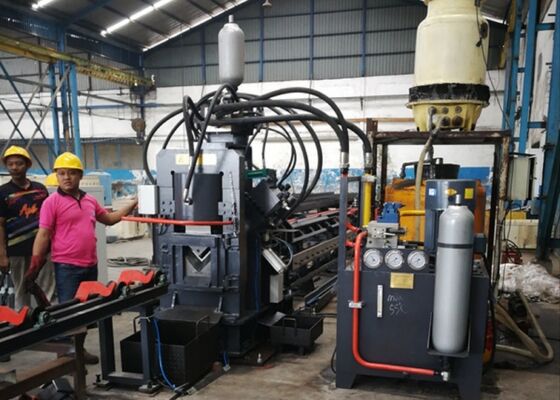

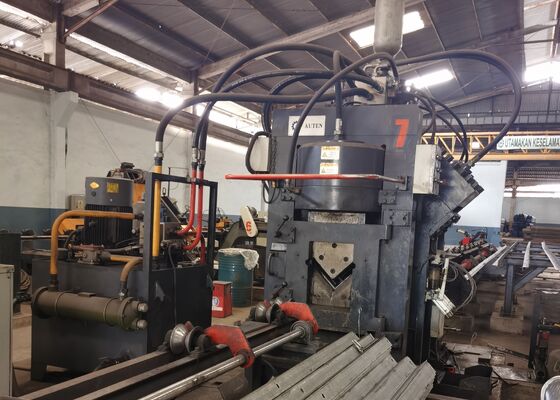

Product Introduction:
The machine is specialized equipment designed for punching, marking, and shearing angle steel, primarily used in the angle steel tower industry, steel structures, and construction of buildings.
Product parameters:
| Model |
JNC1010 |
| Angle size (mm) |
40х40х3~100х100х10 |
| Max. Punching (Dia. х Thi.) (mm) |
Φ26х10 |
| Punching force (kN) |
630 |
| Marking force (kN) |
630 |
| Cutting force (kN) |
1000 |
| Max. length of blank (m) |
12 |
| Max. length of finished (m) |
8 |
| Punches per side |
2 |
| Group of marking letters |
4 |
| Number of letters per group |
12 |
| Character size(mm) |
14x10x19 |
| CNC axes |
3 |
| Cutting mode |
Single Blade |
| Cooling method |
Water cooling/Air cooling/Oil chiller |
| Max. feeding speed (m/min) |
80 |
| Programming mode |
Lofting software or instruction programming |
| Overall dimension (m) |
About 25x6.5x2.5 |
| The above parameters can be adjusted and changed according to customer's specific requirements. |
Product Features:
1. The machine utilizes CNC technology with servo motor feeding, ensuring high efficiency and stable workpiece accuracy. Key hydraulic, pneumatic, and electrical components are sourced from renowned international suppliers.
2. Each side is equipped with two or three sets of punches and dies, capable of accommodating three different punch diameters, enabling the processing of all holes in a single operation.
3. The CNC feeding trolley is driven by an AC servo motor, with feedback provided by a photoelectric encoder. The closed-loop control system guarantees precise positioning accuracy.
4. The computer features a bilingual interface (Chinese/English), facilitating user-friendly operation and the ability to display workpiece drawings. Programming is simple, offering both manual input and the option to utilize programs generated by lofting software.
5. The CNC infeed carriage is powered by a servo motor, with information feedback provided by a photoelectric encoder. The closed-loop control system ensures exceptional positioning accuracy.
6. Marking, punching, and shearing are fully automated, with all finished angle components unloaded via a pneumatic turnover system, reducing operator effort.
7. The marking unit features a robust closed-frame design for enhanced rigidity. Four sets of character boxes are mounted on the marking unit, which can be selected through the program.
8. Equipped with a shearing bypass function to facilitate the processing of fixed-length angles.
9. The control system is composed of a host computer, CNC system, servo motor, PLC, and detection switches. By simply inputting the workpiece drawing, the processing program is generated automatically.
10. The hydraulic system is primarily responsible for performing punching, cutting, marking, pressing materials, and replacing character boxes.
These samples, which reflect standard specifications and common processing conditions within the angle steel tower industry, enable users to directly evaluate the equipment's quality, accuracy, and craftsmanship. They serve as a tangible benchmark for assessing the equipment's performance and its adherence to specific production standards, thereby facilitating informed, data-based decision-making for potential applications.
In the construction of ultra-high voltage (UHV) transmission lines—where towers are subjected to extreme weather conditions and heavy loads—this equipment is essential for processing the angle steel components that form the backbone of the towers. It reliably executes drilling and stamping operations on the angle steel used in tower bodies, cross-arms, and other key structural elements, ensuring precise dimensions and secure connections that maintain the towers' overall stability.
