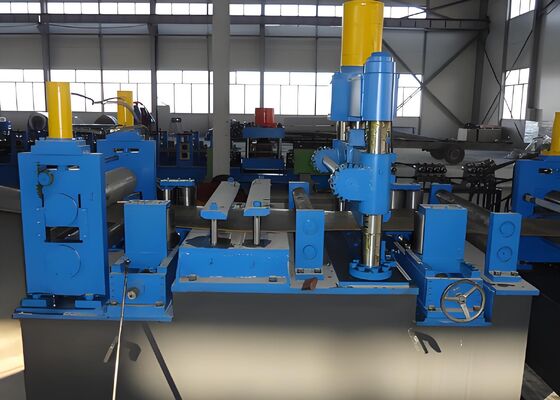

φ60-φ165mm Round Pipe Straight Seam Welded Pipe Production Line Electric-Welded Steel Pipes Industry

تصویر بزرگ : φ60-φ165mm Round Pipe Straight Seam Welded Pipe Production Line Electric-Welded Steel Pipes Industry

جزئیات محصول:

محل منبع:	چین
نام تجاری:	Auten
گواهی:	ISO9001
شماره مدل:	WPF165

پرداخت:

مقدار حداقل تعداد سفارش:	1 مجموعه
قیمت:	negotiable
جزئیات بسته بندی:	کیس چوبی
زمان تحویل:	30 روز
شرایط پرداخت:	L/C، T/T
قابلیت ارائه:	500 مجموعه در سال

مخاطب

توضیحات محصول جزئیات

لوله گرد:	φ60 - φ165 میلی متر	لوله مربع:	50x50 - 125x125mm
لوله مستطیل:	40x60 - 150x100mm	ضخامت دیوار:	2.0 - 6.0 میلی متر (لوله گرد)، 2.0 - 5.5 میلی متر (لوله مربع)
قطر داخلی:	φ650-φ710 میلی متر (تعیین می شود)	قطر بیرونی:	φ1100-φ2000 میلی متر
وزن خنک کننده:	≤10 تن	عرض نوار:	190-500 میلی متر

φ60-φ165mm Round Pipe Straight Seam Welded Pipe Production Line Electric-Welded Steel Pipes Industry

Processing Range:

Round pipe production range: φ60-φ165mm
Square pipe production range: 50×50-125×125mm
Rectangular pipe production range: 40×60-150×100mm
Wall thickness: 2.0-6.0mm (round pipe), 2.0-5.5mm (square pipe)

Product Overview:

This line is primarily designed for producing electric-welded steel pipes with diameters ranging from 60 to 165 mm and wall thicknesses of 2.0 to 6.0 mm. It can also produce square, rectangular, and special-shaped pipes within the range of round pipes. By adding necessary equipment, it can subsequently produce API 5L pipe. This production line was designed and manufactured by integrating similar equipment from both domestic and international sources, taking into account my country's national conditions, and through bold innovation and extensive consultation with users. It boasts economical, reliable, and stable operation.

Steel Pipe Production Range

Round Pipe	φ60 - φ165mm
Square Pipe	50x50 - 125x125mm
Rectangular Pipe	40x60 - 150x100mm
Wall Thickness	2.0 - 6.0mm (Round Pipe), 2.0 - 5.5mm (Square Pipe)

Production Process:

Uncoiling → Straightening, Clamping and Leveling → Shearing and Butt Welding → Looping → Forming, High-Frequency Welding, External Burr Removal, Online Zinc Refilling, Cooling, Sizing, Rough Straightening → Flying Saw Length Adjustment → Inspection and Collection → Packaging → Weighing → Labeling → Storage

φ60-φ165mm Round Pipe Straight Seam Welded Pipe Production Line Electric-Welded Steel Pipes Industry 0

Equipment composition and main parameters of each unit

1. Loading trolley:

Use	Used to receive the steel coil, transport it to the uncoiler, and lift the steel coil to the center of the uncoiler cone head
Structure	It consists of a material rack, a traveling mechanism, a cylinder, a guide rail, etc.
load-bearing	≤15 ton	Lifting method	hydraulic
Walking style	Motor with cycloid reducer drive

2. Uncoiler

Use	Used to suspend and support steel coils to provide raw materials for the production line
load-bearing	≤15tons	Braking method	Pneumatic brake, solenoid valve control
Expansion and contraction method	Single cone hydraulic expansion and contraction type

φ60-φ165mm Round Pipe Straight Seam Welded Pipe Production Line Electric-Welded Steel Pipes Industry 1

3. Straightening machine ZTZ (Y):

Use	Used in conjunction with the uncoiler, the steel strip head is drawn out from the uncoiler and fed into the pinch leveler for leveling.
Structure	Pressing roller device, shovel head device, straight head device
Steel strip width	190－500mm	Steel strip diameter	φ1100－φ2000mm
Motor power	11kw

4. Pinch leveling machine:

Use	The steel strips drawn out from the uncoiler and the straightening machine are leveled at the head and tail and then delivered to the shearing and welding machine.
Structure	It consists of pinch rollers, leveling rollers and transmission devices
Steel strip width	190－500mm	Steel strip diameter	φ1100－φ2000mm

φ60-φ165mm Round Pipe Straight Seam Welded Pipe Production Line Electric-Welded Steel Pipes Industry 2

5. Shear butt welding machine:

Use	Used for shearing and butt welding of irregular parts at the head and tail of strip steel to ensure continuous production of welded pipe units
Shearing strip steel	Strip width	190－500mm	Strip thickness	2.0－6.0mm
classify	Shear butt welding machine		Hydraulic shearing, mechanical tightening, manual welding

φ60-φ165mm Round Pipe Straight Seam Welded Pipe Production Line Electric-Welded Steel Pipes Industry 3

6. Storage looper:

Use	Used to store strip steel and continuously feed the pipe welding machine to ensure continuous production of the pipe welding machine
Strip width	190－500mm		Strip thickness		2.0-6.0mm
Horizontal spiral looper	It consists of a clamping and feeding device, a looper assembly, a discharging device, and an electrical control device.
	motor	22KW		Feeding speed		max=100 m/min
	Storage tray diameter	6.0m		Storage		1000m
