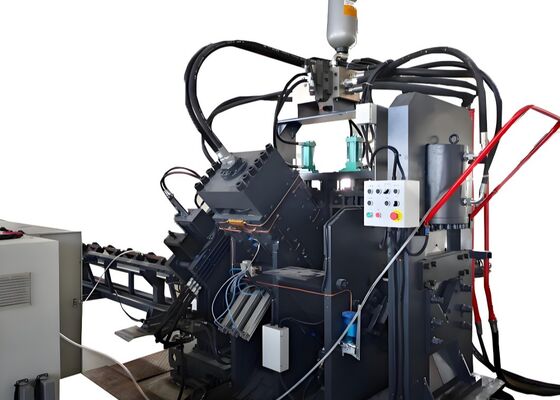

3 CNC Axes Angle Steel Punching Shearing Machine 28000*6500*2200mm Dimension Single Blade Cutting
Applicable Industry:
This CNC angle punching, cutting, and marking machine line is a purpose-built, industry-specific system, meticulously designed for high-precision punching, marking, and shearing of angle steel. The CNC angle steel punch machine is uniquely configured to address the fundamental processing needs of the angle steel tower industry, where component accuracy is critical to ensuring structural integrity and stability.
Specifications:
| Model |
JNC1010 |
| Functions |
Punching, marking, cutting |
| Angle size(mm) |
∟40×40×3～∟100×100×10 |
| Max. length of blank (m) |
12 |
| Max. length of finished (m) |
10 |
| Max. Punching (dia. х thi.) (mm) |
Φ26×10(Material:Q345 510N/mm2) |
| Punches per side |
2 |
| Punching force (kN) |
630 |
| Marking force (kN) |
630 |
| Cutting force (kN) |
1000 |
| Group of Marking letters |
4 |
| Number of letters per group |
12 |
| Dimension of letter (mm) |
14×10×19 |
| Cutting mode |
Single blade cutting |
| CNC axes |
3 |
| Feeding speed of angle (m/min) |
80 |
| Cooling method of hydraulic system |
Water cooling |
| Processing precision |
Accordance with GB2694 |
| Program function |
Input by keyboard and USB interface |
| Dimension(mm) |
28000×6500×2200 |
Product Composition:

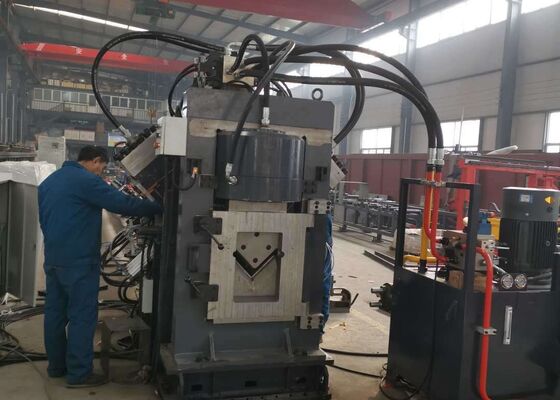

This CNC punching, shearing, and marking system consists primarily of key functional modules, including a transverse conveyor, a rotating loading mechanism, a feed conveyor, a CNC feed carriage, a punching unit, a marking unit, a cutting unit, and an unloading conveyor. Additionally, the angle punching machine line integrates essential support systems—such as hydraulic, electrical, and pneumatic systems—along with various auxiliary components.
Product Features:
1. Marking Unit Design
The marking unit features a robust closed-frame structure, ensuring superior rigidity. It is equipped with four sets of character boxes, which can be selected through the program. The reference marking position can be freely adjusted to meet specific requirements.
2. Punch & Die Setup
The CNC punching and shearing machine line is equipped with three sets of punches and dies on each side, capable of handling three different punch diameters. Controlled by the PLC system, the three sets of dies can move synchronously to adjust the punching reference position as needed.
3. Human-Machine Interface & Programming
The system is equipped with a bilingual Chinese/English interface, designed for intuitive operation and capable of displaying workpiece diagrams. Programming is streamlined, allowing the machine to directly utilize program data generated by CAD software. During program editing, users are required only to input workpiece dimensions, hole diameters, reference marks, and quantities.
4. Control & Feeding System
The CNC punching equipment for towers utilizes advanced CNC technology and servo motor-driven feeding, providing enhanced operational efficiency and consistent workpiece accuracy. All critical hydraulic, pneumatic, and electrical components are sourced from renowned international suppliers, guaranteeing dependable system performance.
These samples, representing common specifications and processing requirements within the angle steel tower industry, allow users to directly assess the equipment's processing quality, precision, and workmanship standards.
In the construction of ultra-high voltage (UHV) transmission lines, where towers must withstand extreme weather conditions and heavy loads, this equipment plays a crucial role in processing the angle steel components that form the core framework of the towers. It consistently performs drilling and stamping operations on the angle steel used in tower bodies, cross-arms, and other critical structural elements. This ensures precise dimensional accuracy and strong connections, thereby safeguarding the overall stability of the towers.
