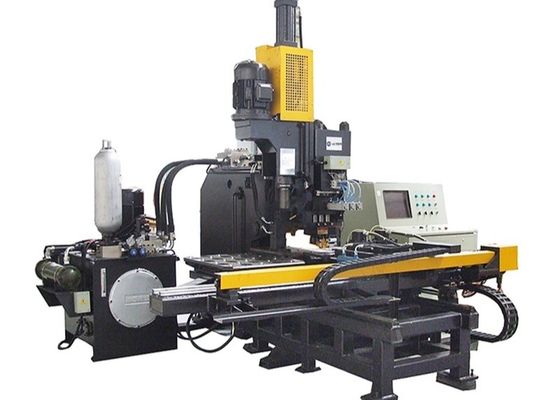

3.2×3×1.9m Overall Dimension CNC Plate Punching Marking And Drilling Machine 3 Die-Stations

1. The machine-frame is made by C-type plate welding, with good rigidity and big handling space. The machine sets three die-stations (among them, one is the marking die-station), automatic switching die-stations. Clamping system can adapt to different workpiece, with zero baffle as datum mark, and workpiece supported by rolling-ball working table. X & Y axis action controlled by servo motor and ball-screw driving and PLC control the position of punching, so as to make the whole machining process automatically; Operator input the workpiece program, it can be used repeatedly.

2. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision.
3. Important functional components adopt modular assembly, easy to repair it.
4. Carry out punching, marking and drilling on the one plate.

5. Drilling unit has the functions including rapid falling, slow work-feeding and quick feeding back to improve working efficiency.

6. With fault self-diagnosis function.

7. Easy programming, may input the diameter of holes, position and the quantity of work piece to computer, and also may use the program generated by lofting software, or adopt direct conversion CAD/CAM.
